系統產品
通過模塊化集成傳動機構、承重結構與鎖閉單元，實現對門窗啟閉力度、密封等級與承重負荷的毫米級協同控制。兼容歐標/澳標/國標型材，為超寬幕墻、颶風區高層建筑等特殊場景提供抗風壓9級的系統解決方案。

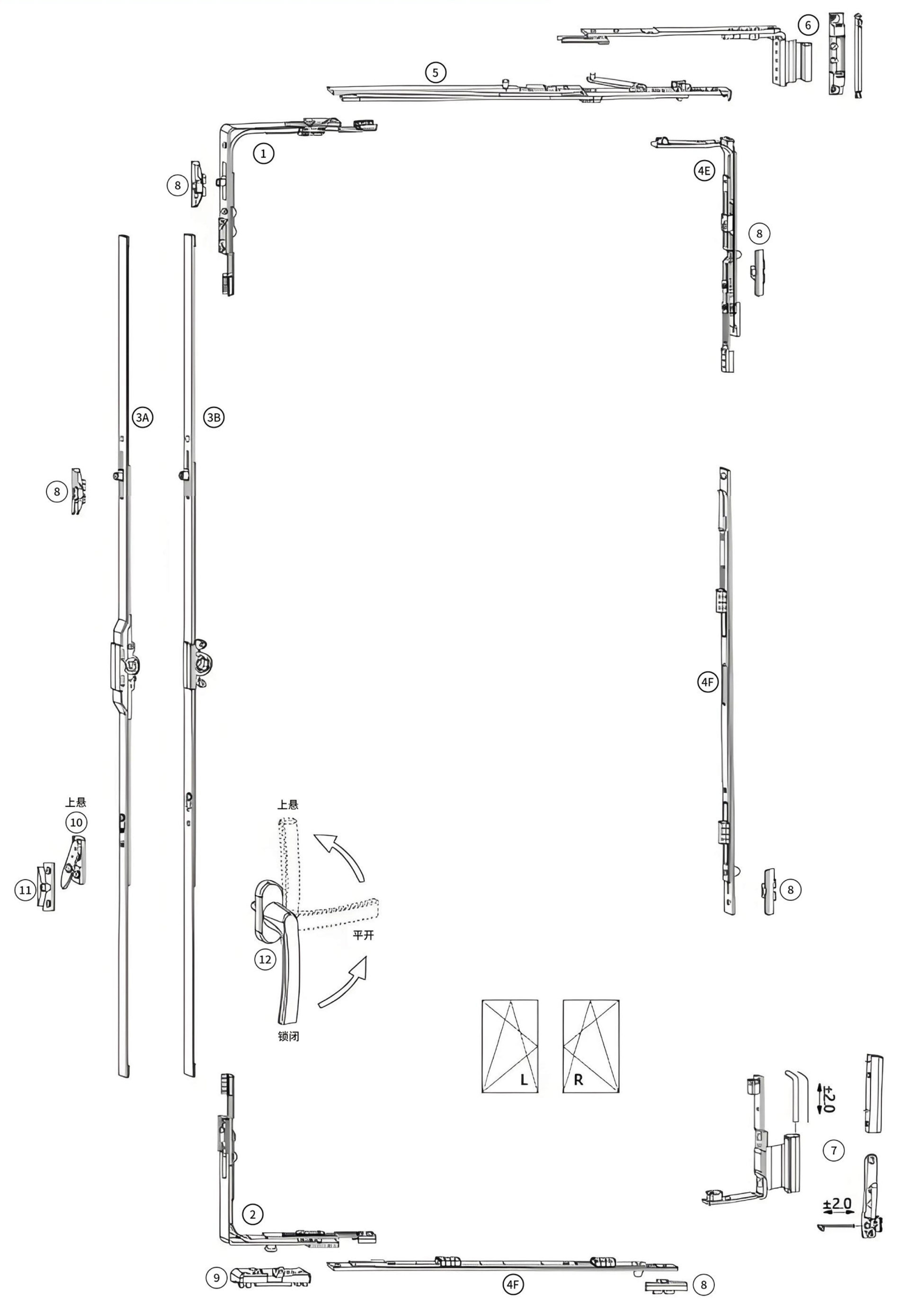

UPVC 內開內倒窗系統
參數注釋
| Number | Name | Count | Comments |
| 1 | Top Conrner | 1 | |
| 2 | Bottom Corner | 1 | |
| 3A | Espag Rod 7.5mm | 1 | |
| 3B | Espag Rod 15mm | 1 | |
| 5 | Tilt & Turn Hinge | 1 | |
| 6 | Top Hinge Parts | 1 | |
| 7 | Bottom Hinge Parts | 1 | |
| 8 | Lock Keeper | 2-5 | |
| 9 | Lock Keeper | 1 | |
| 4E | Center Corner | 1 | Optional Parts |
| 4F | Center Corner Extension Rod | 2 | Optional Parts |
| 10 | Anti-accidental Touch Device | 1 | Optional Parts |
| 11 | Anti-accidental Touch Device Keeper | 1 | Optional Parts |
| 12 | Handle | 1 | Different Styles Available |
鋁制內開內倒窗系統
參數注釋
| Number | Name | Count | Comments |
| 1 | Handle | 1 | Different Styles Available |
| 2 | Anti-accidental Touch Device | 1 | |
| 3 | Top Conrner | 1 | |
| 4 | Lifting Block | 1 | |
| 5 | Lock Keeper | 1 | |
| 6 | Tilt&Turn Hinge | 1 | |
| 7 | Top Hinge Parts | 1 | |
| 8 | Bottom Keeper | 1 | |
| 9 | Bottom Hinge Parts | 1 | |
| 10 | Flip Support | 1 | |
| 11 | Anti-fall device | 1 | |
| 12 | Limit Support | 1 |
